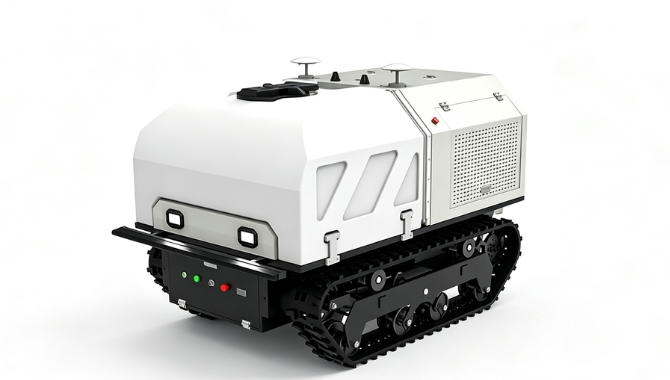

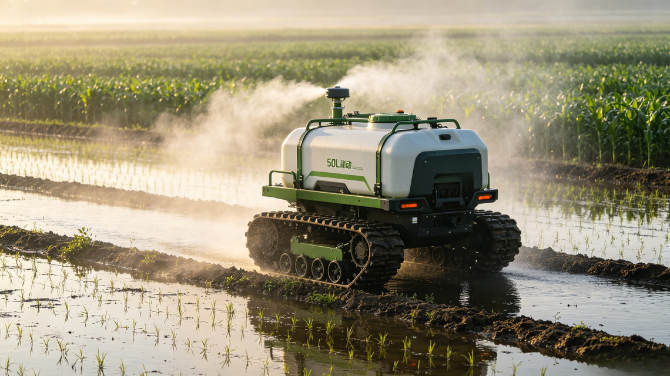

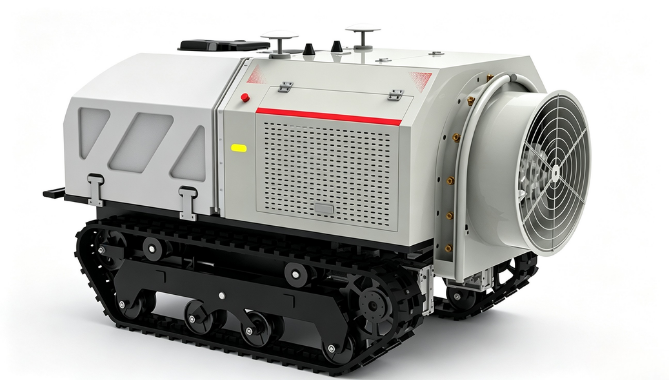

500L Oil‑Electric Hybrid Farm Sprayer
Key Points for Selecting Oil‑Electric Hybrid Agricultural Sprayer
When purchasing oil‑electric hybrid agricultural sprayers, buyers should focus on hybrid powertrain stability, tank volume, chassis terrain adaptability and spray system performance. Goldilocks 500L hybrid sprayer adopts mature oil‑electric hybrid system to avoid frequent charging trouble of fully‑electric sprayers. The 500‑liter tank reduces repeated refilling work in large‑area operations. The mobile robot chassis supports remote‑control driving on slopes and muddy ground. Built‑in multi‑stage filtration prevents nozzle clogging caused by pesticide impurities. Buyers also need to evaluate after‑sales support, spare‑part availability and customization capacity. For commercial‑grade plant‑protection projects, hybrid‑power sprayer balances continuous working time and operating cost, bringing higher return‑on‑investment for farms, plantations and agricultural contractors.
500L Diesel-Electric Hybrid Sprayer Purpose-Built for Large-Scale Orchards
- One fill, 10 mu – far fewer trips to the mixing station.
- Long endurance – all-day operation, minimal refueling.
- Precise air control – finer mist, even coverage.
- Auto route planning – less overlap, fewer missed rows.
- Stable on hills and plains – reliable in tough terrain.
More acres covered per day, less labor and downtime.
- 100m remote throttle – operate at a safe distance.
- Lower pesticide exposure – healthier working conditions.
- Precise air volume – better atomization, uniform coverage.
- Safety edge sensors – instant shutdown on obstacles.
- One-person operation – saves labor and training.
Safer, cleaner, and far more comfortable than manual spraying.
- Hybrid drive – lower fuel cost, longer runtime.
- 3–4 hours per tank – fewer refueling stops.
- Steady power output – smooth on slopes and flat fields.
- Fine atomization – more value from every liter.
- Lower operating cost – stronger ROI for big orchards.
Cut fuel bills without sacrificing spraying performance.
- Centimeter-level accuracy – precise, consistent coverage.
- Automatic path planning – dramatically less pesticide waste.
- Driverless mode supported – frees labor for other work.
- Fewer overlaps – healthier trees, cleaner rows.
- Faster completion – finish large orchards in less time.
Bring precision farming to your orchard, one spray at a time.
- Three-stage filtration – prevents clogs at the source.
- Longer maintenance cycles – steadier continuous work.
- Fewer breakdown stops – protects your spray schedule.
- Durable construction – reliable season after season.
- Consistent output – even coverage across the orchard.
Keep your pest control program running without interruptions.
- Strong hybrid power – smooth climbing on slopes.
- 500L tank – about 10 mu per single fill.
- Stable chassis – reliable on uneven ground.
- Remote control – safe operation in hard-to-reach areas.
- All-day endurance – meets large-scale spraying needs.
One machine that handles your toughest orchard conditions.
The Advantage of Oil-Electric Hybrid Agricultural Sprayer

Dual‑drive of diesel engine + motor, full load 500L liquid medicine, meeting all‑weather operation requirements for large‑scale orchards and reducing labor costs.

Adopt independent clean‑water tank and three‑stage filtering device to extend service life, ensure operation stability and reduce loss caused by failures.

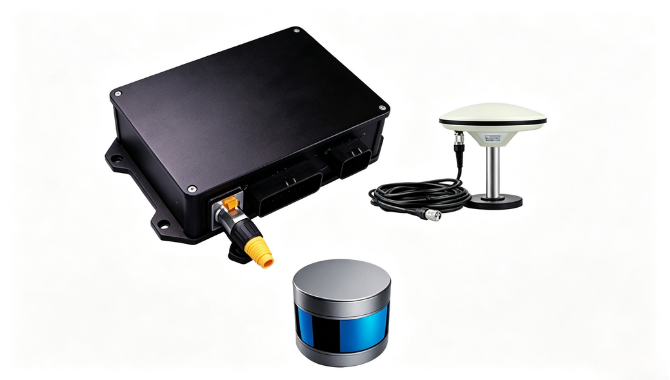

Adopt high‑torque encoder‑equipped hub motor and steering motor, built‑in VCU, easily compatible with unmanned driving control system.

Realize operation without personnel getting close via remote‑control device, reduce personnel exposure risk, achieve precise control and improve spraying uniformity.
Core Advantages of Oil‑Electric Hybrid Power System
Oil‑electric hybrid power becomes a key upgrade for modern agricultural spray robots. Goldilocks 500L oil‑electric hybrid agricultural sprayer integrates fuel range extender and electric drive motor. The fuel unit generates electricity during field work to supply driving and spraying power, removing strict dependence on large‑capacity battery packs. Compared with fully‑electric sprayers, hybrid units achieve much longer continuous working hours without waiting for charging on site. Electric drive brings smooth, low‑vibration chassis movement. Users can avoid sudden work‑stop risks caused by battery depletion in remote farm zones. Besides performance improvement, hybrid design also helps lower overall battery‑replacement costs year by year. For large‑scale pest‑control tasks, hybrid‑power sprayers maximize usable working time within limited farming windows, helping growers complete plant‑protection missions efficiently and reliably.


Value of Mobile Robot Chassis for Spraying Operation
The mobile robot chassis lays the foundation for stable performance of Goldilocks 500L oil‑electric hybrid agricultural sprayer. Different from ordinary agricultural spray carts, this robot‑based chassis supports remote‑control driving, adapting to complex farm environments including sloped orchards, muddy post‑rain farmland and narrow crop rows. The chassis can be configured as wheel‑type or tracked‑type according to site conditions. Low ground‑pressure design reduces soil compaction damage to farmland soil structure. Operators control movement remotely without walking alongside pesticide mist. Combined with hybrid power system, the chassis obtains strong climbing capacity and long‑duration endurance. For orchard plant‑protection, narrow‑row crop spraying and hilly‑area agriculture, robot chassis greatly expands applicable working scenarios. It also reserves installation interfaces for future navigation upgrade including Beidou and laser navigation modules for autonomous driving function.

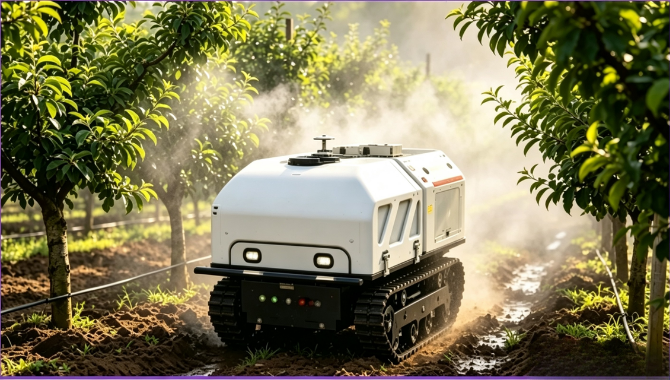

Full Application of 500L Hybrid Sprayer for Orchard Plant‑Protection
Orchard plant‑protection faces multiple challenges including sloped terrain, uneven ground, tall fruit‑tree canopy and narrow row spacing. Conventional wheeled sprayers often slip on slopes and cannot reach inner canopy leaves. Goldilocks 500L oil‑electric hybrid agricultural sprayer adapts well to orchard working conditions. Its robot chassis delivers strong climbing performance for hilly orchards. The 500‑liter large‑capacity tank decreases refilling frequency when treating dozens of fruit‑tree rows. Adjustable spray pressure and atomization help pesticide mist penetrate inner and outer tree canopies. Hybrid power avoids battery‑power limits during long‑time continuous orchard spraying. Multi‑stage filtration protects spray nozzles from blockage by orchard‑use pesticide residues. Remote‑control driving lets operators navigate along fruit‑tree rows safely. This sprayer works for apple, citrus, peach and vineyard orchards. Many orchard operators replace labor‑intensive manual spraying with this hybrid robot sprayer to cut labor cost and improve pesticide application uniformity for better disease‑and‑pest control effect.


Hybrid Sprayer VS Fully‑Electric Sprayer: Pros & Cons Analysis
When selecting robot‑type agricultural sprayers, buyers often compare oil‑electric hybrid sprayers and fully‑electric sprayers. Fully‑electric sprayers run with zero local exhaust emission and relatively low noise, yet they are strictly limited by battery capacity. Once battery power runs out, field work must stop and machines need return for charging. In remote farmland without charging infrastructure, fully‑electric sprayers face obvious application bottlenecks. Goldilocks 500L oil‑electric hybrid agricultural sprayer adopts oil‑electric hybrid powertrain. Fuel range extender generates power on‑site, supporting long‑hour continuous spraying without external charging facilities. Hybrid units have higher initial purchase cost than basic full‑electric models. However hybrid sprayers save huge time loss caused by battery‑charging interruptions for large‑scale commercial plant‑protection projects. Electric‑drive segment keeps low‑noise working experience. Operators can switch to pure‑electric mode for enclosed‑space greenhouse operation to cut exhaust influence. For small‑plot gardens with convenient charging, full‑electric sprayers may meet requirements. For large‑scale farms, hilly orchards and remote planting zones without charging points, oil‑electric hybrid sprayers deliver far better continuity and higher comprehensive return‑on‑investment for long‑term farm operation.
Common‑Fault Prevention & Troubleshooting Tips for Hybrid Sprayer
Proper fault prevention reduces unexpected downtime of Goldilocks 500L oil‑electric hybrid agricultural sprayer during busy farming seasons. The most frequent field‑side failures include nozzle clogging, insufficient spray pressure, abnormal hybrid‑power startup, remote‑control signal loss and chassis abnormal noise. Most nozzle‑blocking issues originate from insufficient filtration or unclean pesticide liquid. Users must strictly use multi‑stage filtration assembly and perform liquid‑tank cleaning after every spraying shift. Insufficient spray pressure may relate to pump wear, filter‑element blockage or pipeline leakage. Check filter consumables first when pressure drops. For hybrid‑power startup failure, inspect fuel supply, battery‑terminal connection and engine‑maintenance status. Remote‑control signal loss often comes from signal shielding or low transmitter battery; avoid heavy metal obstacles between remote‑controller and machine body. Abnormal chassis noise usually links with loose bolts, track/tire excessive tension or motor overload. Before starting each‑day work, perform short pre‑operation inspection covering filter parts, spray pipeline, hybrid‑power indicators and remote‑control function. Goldilocks user manual contains detailed troubleshooting flowcharts. If complex faults occur which cannot be solved locally, contact our technical team for remote‑video diagnosis. Never run the machine continuously under obvious abnormal status to avoid expanding component damage and bringing extra repair‑cost losses for farm operators.

Technical Parameters


| Item | Specification |
|---|---|
| Overall Dimension | L2160 × W1330 × H1150 mm |
| Gross Weight | 1200kg (Full‑loaded water tank) |
| Tank Capacity(Pesticide/Water) | 500L / 30L |
| Driving Mode | Motor‑driven |
| Operating Temperature | 0℃ ~ +55℃ |
| Obstacle‑surmounting Height | 150 mm |
| Max. Climbing Angle (Full‑load) | 15° |
| Ground Clearance | 180 mm |
| Travel Speed | 0‑3.6 km/h |
| Turning Diameter | 2500 mm |
| Spraying Range (Single Side) | 5‑6 m |
| Fuel Type | Diesel |
| Protection Class | IP54 |
| Remote‑control Distance | 100 m Note: The original data “100mm” is suspected to be a typo |
| Nozzle Quantity | 28 |
| Charging Mode | DC56.4V 12A |
| Engine Power | 15 kW |
| Generator Power | 4 kW |
| Plunger Pump Flow | 32‑45 L/min |
| Fan Diameter | 800 mm |
| Steering Mode | Track Differential Steering |
| Navigation Method | RTK Navigation (Optional) |
Application Fields & Scenarios

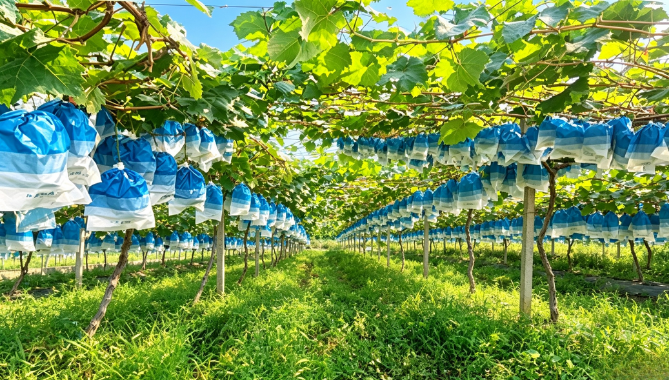

Goldilocks 500L oil‑electric hybrid sprayer adapts for sloped fruit orchards such as citrus, apple and peach orchards. Hybrid power supports long‑time spraying. Robot chassis delivers strong climbing capacity on uneven orchard ground. Remote‑control operation improves safety for orchard pest‑control and foliar fertilization work.

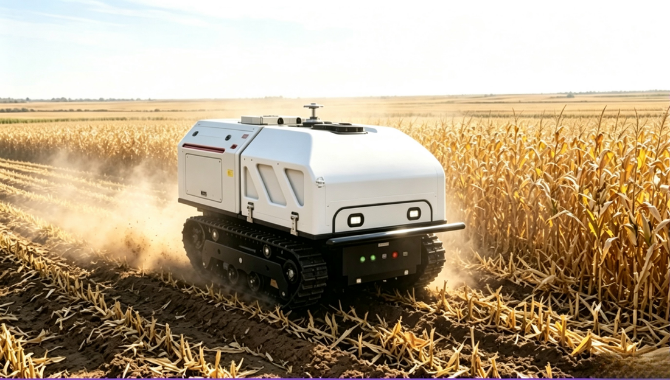

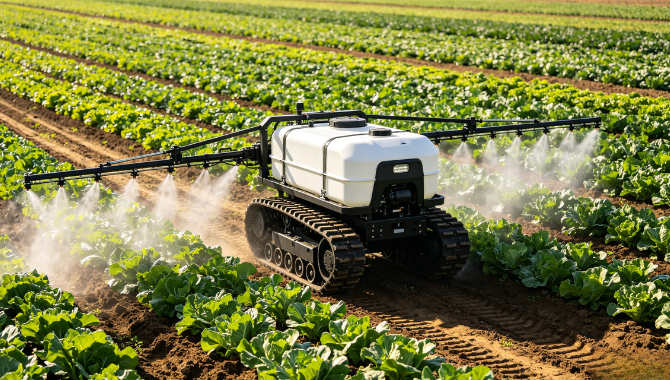

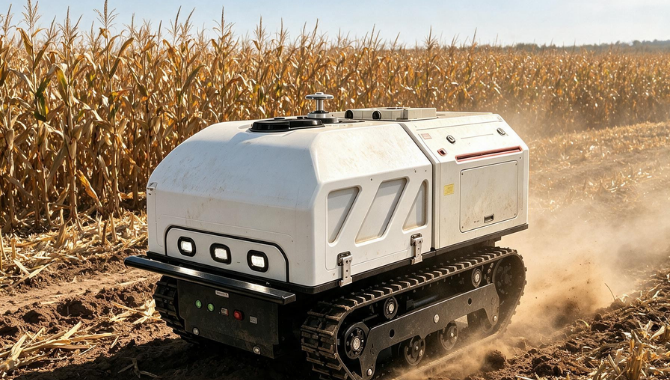

Suitable for large‑scale grain and commercial row‑crop farmland. The 500‑liter tank reduces refilling frequency. Oil‑electric hybrid removes charging‑site dependency. Mobile robot chassis passes soft post‑rain soil, completing pest‑control and foliar fertilization efficiently for wide farm plots.

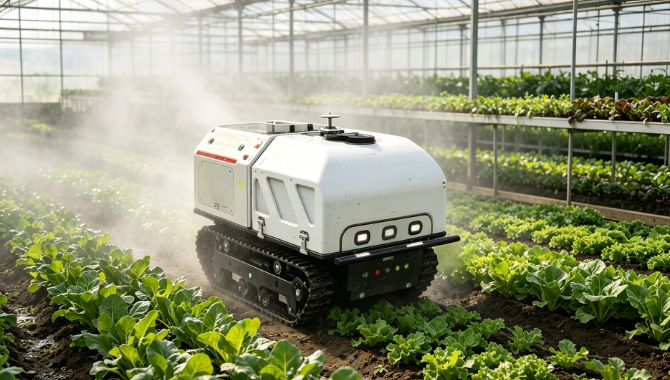

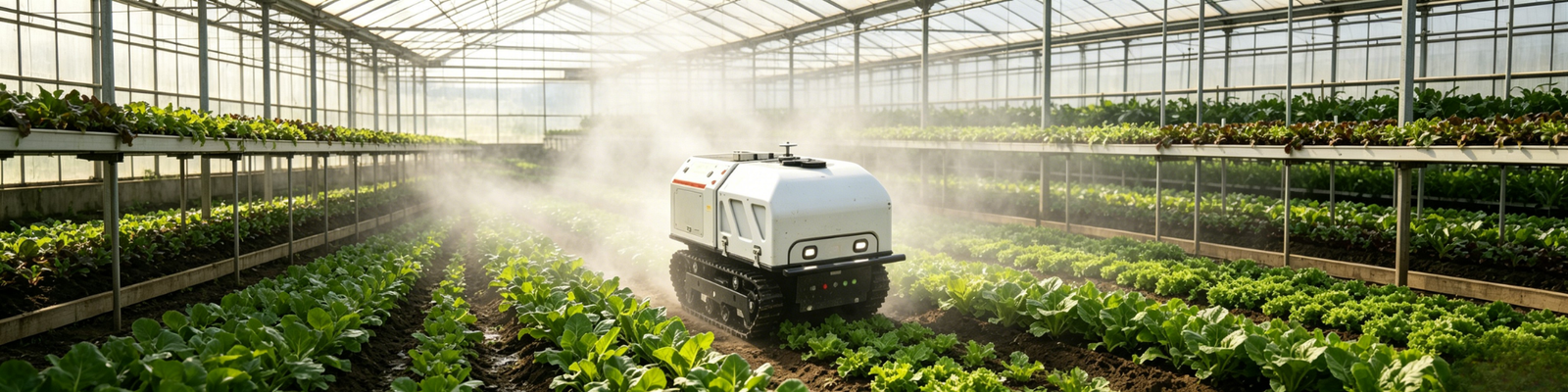

Work for large‑size vegetable, flower and seedling greenhouses. Machine can switch to pure‑electric driving mode inside greenhouse to avoid exhaust pollution. Compact robot chassis turns flexibly in narrow greenhouse aisles for precise spraying tasks.
Capable for emergency pest prevention and disinfection for scattered forest edges and farm‑forest mixed zones. Remote‑control robot chassis accesses complicated terrain, supporting rapid large‑area pesticide spraying for emergency plant‑protection missions.
