Multi‑Mode Robot Navigation Solutions
High‑Precision Robot Navigation System
Goldilocks multi‑type navigation system empowers unmanned mobile robots to finish field tasks autonomously. Beidou RTK reaches ±2 cm positioning accuracy; follow navigation supports human‑tracking movement; laser navigation realizes environmental mapping & obstacle avoidance. Compatible with wheeled, tracked, 2WD and 4WD robot chassis, the navigation controllers support all‑weather field operations. For robot integrators and hardware purchasers from Google search and Alibaba International station, our ready‑installed navigation modules shorten project deployment cycles and lower technical barriers for outdoor autonomous robot projects.

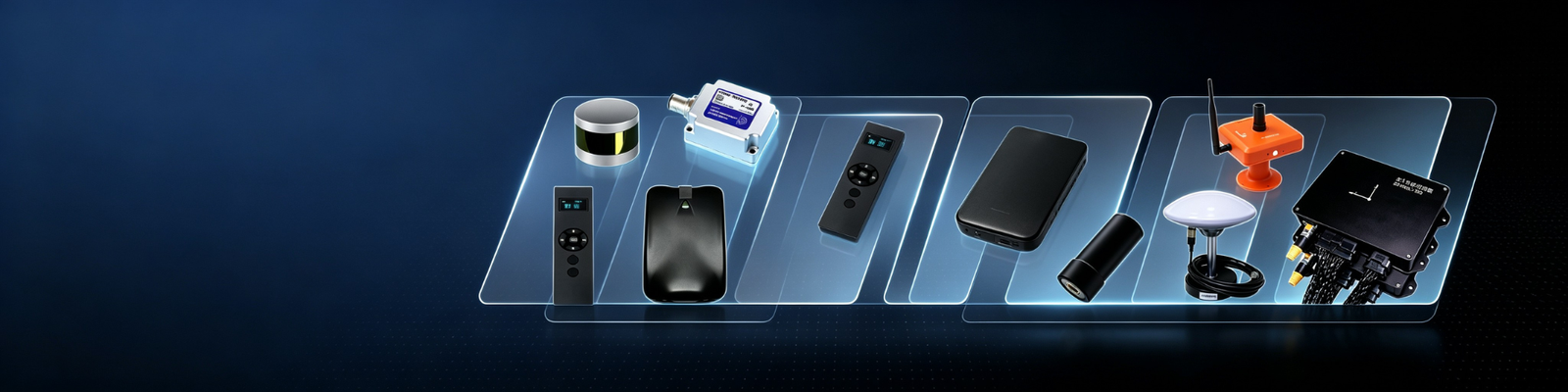

Navigation System

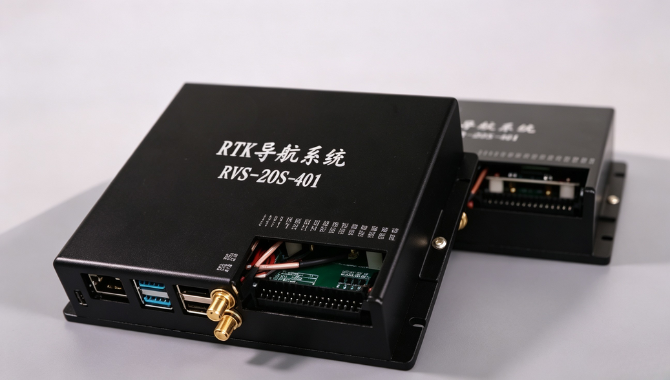

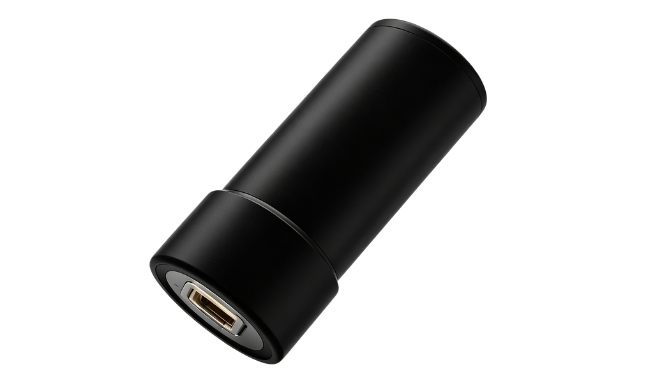

Beidou RTK Navigation for Outdoor Mobile Robot
Goldilocks Beidou RTK navigation controller delivers centimeter‑level positioning performance for outdoor mobile robots. It adopts dual‑antenna RTK technology and receives multi‑constellation satellite signals including BDS, GPS, GLONASS, Galileo and QZSS. Positioning accuracy reaches ±2 cm and traveling accuracy ≤3 cm. This navigation unit supports off‑course protection function and works stably under rainy and snowy weather. It is compatible with wheeled, tracked, two‑wheel‑drive and four‑wheel‑drive robot chassis. It provides complete development API for robot developers to realize autonomous path‑planning and obstacle‑avoidance. It is widely deployed for agricultural robots, inspection robots and rescue robots. Sourced by global robot buyers via Google and Alibaba international station, this navigation hardware improves outdoor‑robot autonomous operation stability greatly.

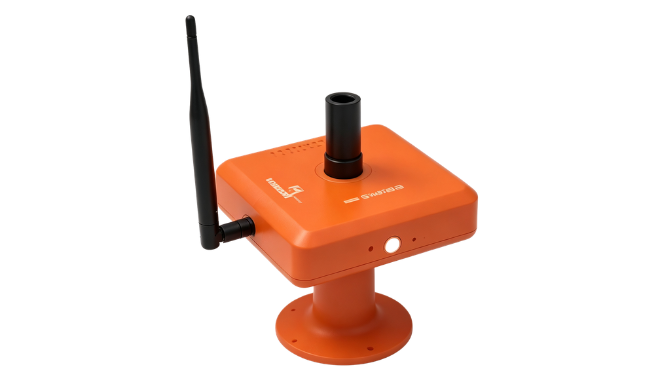

Goldilocks Beidou RTK Navigation Controller for Autonomous Robots

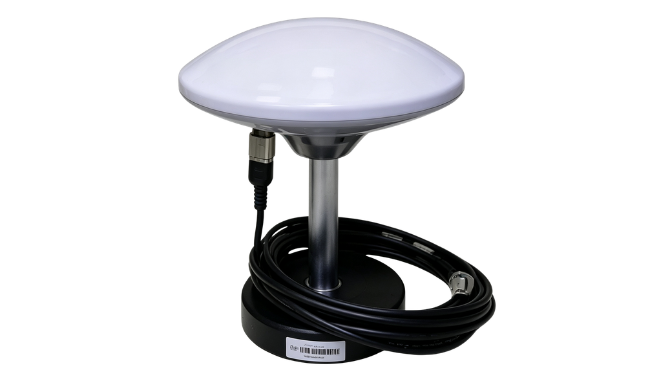

Goldilocks Beidou RTK Navigation Controller delivers centimeter-level positioning for autonomous mobile robots. Built on dual-antenna RTK technology, it simultaneously tracks BDS, GPS, GLONASS, Galileo and QZSS multi-frequency signals, achieving 0.8 cm+1 ppm horizontal accuracy, 1.5 cm+1 ppm elevation accuracy and 0.1° heading accuracy per 1-meter baseline. With a 20 Hz data update rate and adaptive RTCM differential input, it ensures stable, real-time navigation in all weather conditions, including rain and snow.
The controller supports manual-teaching navigation: drive the robot along the desired path once, and it replays the route autonomously. A reserved LiDAR fusion interface enables obstacle detection and automatic detour, compatible with sensors from multiple manufacturers. Full open APIs cover map management, robot parameter configuration and remote task scheduling.
Compatible with wheeled, tracked, 2WD and 4WD robot chassis via CAN-bus, it runs on 24 V DC at ≤24 W and operates reliably from -25°C to +70°C. Ideal for agricultural, public-safety and emergency-rescue robot platforms.

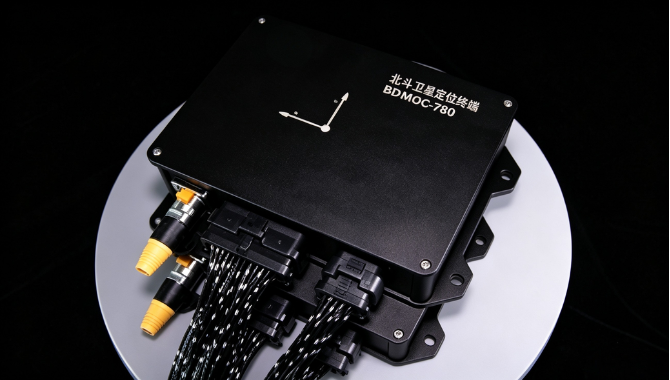

Beidou RTK Navigation Hardware for Autonomous Agricultural & Inspection Mobile Robots
Goldilocks Beidou RTK navigation hardware is designed for autonomous mobile‑robot projects in agriculture, public safety and emergency rescue. This navigation controller uses dual‑antenna RTK positioning and receives multi‑frequency signals from BDS, GPS, GLONASS, Galileo and QZSS. It delivers 0.8 cm+1 ppm horizontal accuracy, 1.5 cm+1 ppm elevation accuracy and 0.1° heading accuracy with a 1‑meter baseline. Positioning, heading and raw‑data update rate hits 20 Hz, with adaptive RTCM differential input supported.
Manual‑teaching navigation enables the robot to repeat manually‑recorded routes. A reserved LiDAR fusion interface realizes obstacle detection & automatic detour. Open‑APIs support map management, parameter setting and remote task scheduling. Compatible with wheeled/tracked, 2‑drive/4‑drive CAN‑bus robot chassis, it runs on 24V DC with ≤24W power consumption at ‑25℃~+70℃. Global developers source this hardware for orchard‑spraying, mowing, patrol and rescue robots.

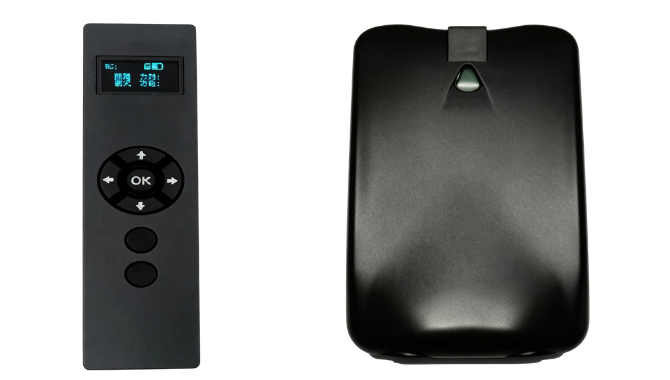

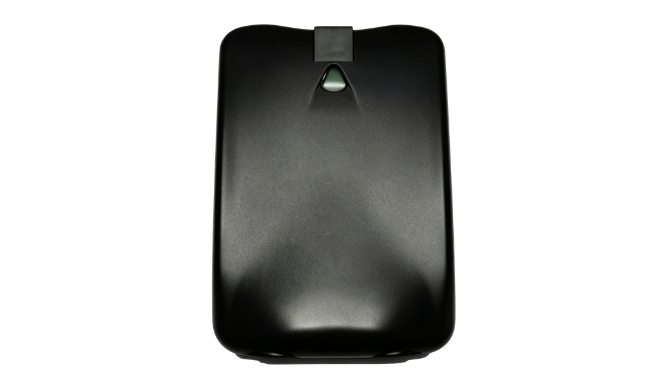

UWB Follow Navigation for Mobile Robot Platform

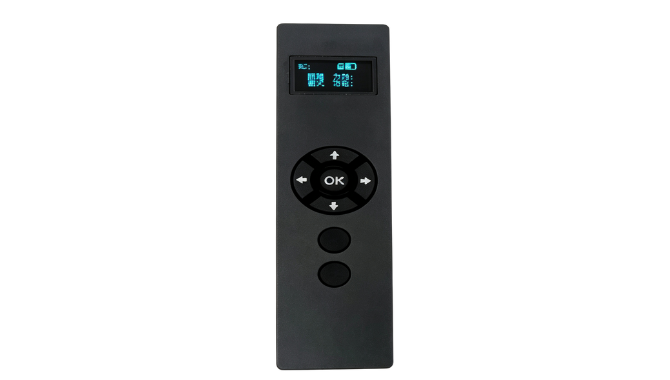

Goldilocks follow navigation system adopts UWB wireless‑communication technology to realize human‑following function for mobile‑robot platforms. This navigation kit includes remote‑control tag and follow base‑station module. It supports two working‑modes: follow‑mode and remote‑control‑mode, users can switch between two modes freely. Adjustable follow‑distance ranges 0.5‑7 meters; maximum follow‑distance can reach 8‑30 meters. Maximum remote‑control distance is within 30 meters. It adapts tracked‑type, wheel‑type, four‑wheel‑drive and two‑wheel‑drive robot chassis. The system works both indoors and outdoors day and night. Users adjust follow‑distance parameter through 232‑interface configuration. It fits transport‑robot‑scenarios. Global robot‑buyers from Google and Alibaba international station source this navigation kit for field‑transport‑robot projects.

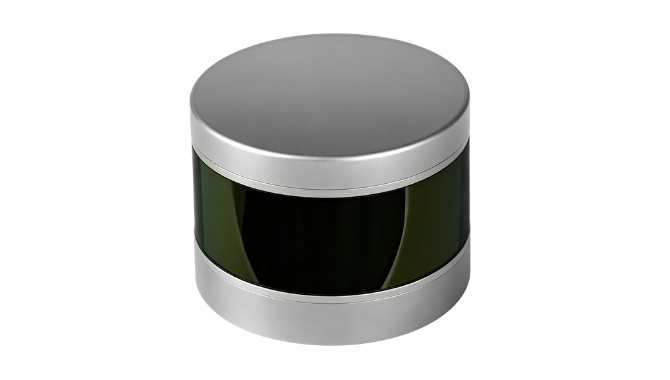

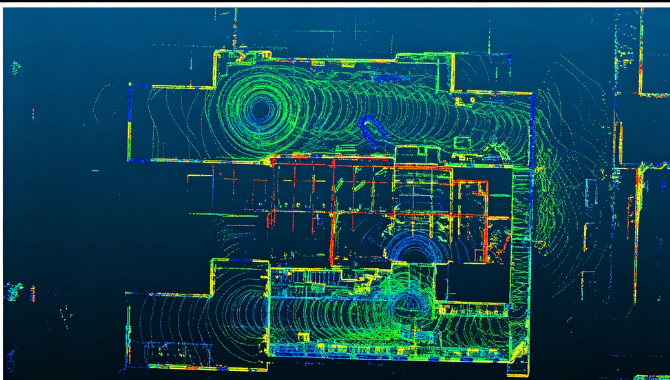

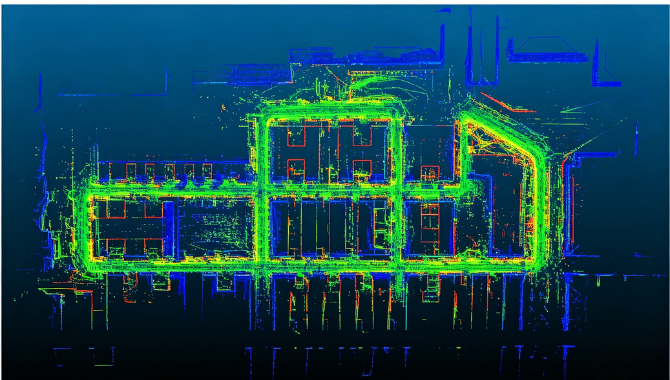

Goldilocks Laser Navigation: Reliable Autonomous Robot Solution
Goldilocks Laser Navigation delivers a proven, ready-to-deploy autonomous navigation solution for robot manufacturers and system integrators. Based on laser SLAM technology, the system provides centimeter-level positioning, real-time environmental mapping and dynamic obstacle avoidance without requiring satellite signals or external infrastructure—reducing deployment time and site-modification costs.
The controller supports manual-teaching mode for fast route setup, and its multi-sensor fusion architecture accepts LiDAR, IMU, odometry and optional RTK inputs for maximum flexibility across indoor and outdoor use cases. Full open APIs and CAN-bus connectivity simplify integration with wheeled, tracked, 2WD and 4WD chassis, while a wide operating-temperature range and low power consumption ensure dependable performance in demanding environments.
Backed by complete documentation and developer support, Goldilocks Laser Navigation helps robot builders shorten time-to-market and deliver robust autonomous capabilities for logistics AGVs, agricultural robots, inspection platforms and emergency-rescue systems. Source it via Google and Alibaba International Station for global availability.

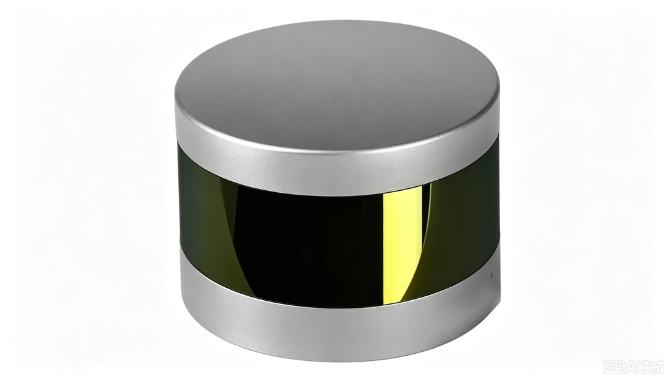

Goldilocks Laser Navigation Controller with Open APIs
Goldilocks Laser Navigation Controller is a complete hardware-and-software navigation platform built on laser SLAM technology. The controller integrates advanced motion-control and fault-tolerant algorithms, fusing data from LiDAR, IMU, odometry and optional RTK modules to deliver reliable, stable and safe autonomous navigation in complex environments.
The system provides a full set of open development APIs, including map management, robot parameter configuration and remote task dispatch, enabling developers to rapidly integrate navigation into custom robot platforms. A reserved LiDAR fusion interface supports sensors from multiple manufacturers, offering flexibility in hardware selection. Manual-teaching navigation allows operators to record working paths by driving the robot once, after which the robot replays routes autonomously.
Compatible with wheeled, tracked, 2WD and 4WD robot chassis via CAN-bus connection, the controller runs on 24 V DC with ≤24 W power consumption and operates from -25°C to +70°C. It is ideal for developers building agricultural, logistics, inspection and emergency-rescue autonomous robots.
Application Fields & Scenarios
Agricultural Robot Application :Beidou navigation enables autonomous driving for orchard‑spray robots and mowing robots. Robots complete spraying and mowing tasks autonomously under complex orchard terrains, cutting labor input and improving field‑operation efficiency.
Public‑Safety Inspection Robot Application:Multi‑mode navigation systems support inspection‑robot autonomous cruise for public‑safety scenarios. Robots travel along preset routes, finish site inspection and collect on‑site data for safety‑monitoring work.
Emergency Rescue Robot Application:Beidou and laser navigation work for emergency‑rescue mobile‑robots. Robots move into dangerous‑access‑limited‑zones to carry out reconnaissance tasks, replacing human staff to finish high‑risk field‑mission.
Field‑Transport Robot Application:Follow navigation adapts field‑transport‑robots. Robots follow field‑workers automatically on mountain‑roads and muddy‑terrains, assisting material‑transport work and lowering manual‑carrying‑work‑load.
Automated Reconnaissance Robot Application:High‑precision Beidou navigation empowers automated‑reconnaissance‑robots. Robots execute autonomous patrol and reconnaissance missions in open‑field‑environment with stable‑positioning‑performance.
Indoor‑Semi‑Outdoor Logistics Robot Application:Laser navigation delivers SLAM‑mapping navigation for logistics‑robots under GNSS‑signal‑shielded‑environments. Robots finish material‑handling missions without satellite‑position‑signal‑support.
Product Features & Advantages
Goldilocks navigation hardware supports 24‑hour all weather field robot operation. Beidou RTK navigation runs stably in rain and snow with wide working temperature range. Follow navigation works day and night indoors and outdoors. Laser navigation keeps stable SLAM output under complex ambient light conditions.
Goldilocks navigation hardware provides complete open API interfaces and detailed technical documents. Developers can finish map management, parameter configuration and remote task scheduling via API resources. The materials reduce algorithm development workload and lower technical barriers for autonomous mobile robot building.
Goldilocks navigation hardware uses industrial grade components and embedded multi fault tolerant algorithms for stable navigation in complex field conditions. Beidou navigation receives multi constellation signals for stable positioning under bad weather. Follow navigation maintains stable UWB wireless connection. Laser navigation outputs steady SLAM mapping. All units pass strict temperature and vibration tests for lower robot failure rate.
Goldilocks navigation hardware supports manual teach navigation. Operators manually drive robot along target path once, and the robot repeats the route automatically. The feature lowers field deployment threshold and cuts commissioning time. Both developers and field operators can complete navigation configuration efficiently.
Goldilocks modular navigation portfolio covers open sky outdoor Beidou RTK navigation, UWB follow navigation for field transport and laser navigation for GNSS denied environments. Developers select proper modules according to real application scenarios. Each unit works under wide temperature range and adapts complex field terrains for robot projects.
Goldilocks navigation portfolio works well with wheeled, tracked, two wheel drive and four wheel drive robot chassis. Beidou, follow and laser navigation units support CAN bus and standard serial port interfaces. Developers can integrate the hardware onto existing chassis without extensive hardware modification. Open API documents greatly shorten system integration cycles for robot integrators.
