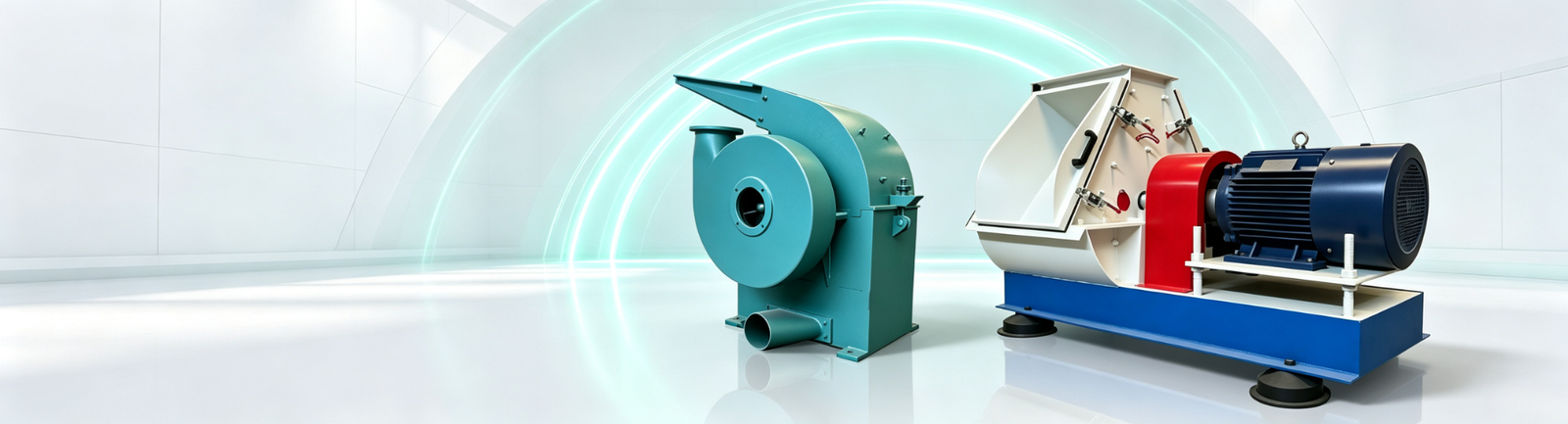

SFSP and 9FQ Hammer Mills for Feed
The Goldilocks crusher line covers the two jobs every feed plant and grain processor needs: the SFSP water-drop type hammer mill for high-output grinding of corn, grain and husks, and the 9FQ feed crusher for shells, stalks, tubers, cakes and coarse grains. The SFSP series runs from 15 to 110 kilowatts and 1 to 20 tonnes per hour, with 2970 rpm spindle speed and up to 116 hammers, so the plant matches the capacity to the line. The 9FQ series grinds 800 to 3500 kilograms per hour at under 10 kilowatt-hours per tonne, keeping the power bill honest. Both ranges are built at the Goldilocks factory in Hunan, balanced, tested and shipped with a manual and parts list that match the model. For a feed plant planning the grinding stage, the crusher series is where the line begins. The series keeps the grinding stage ahead of the line. That is the whole point.
High Output Feed Grinding Machine
A feed line is only as fast as its grinding stage, and the Goldilocks SFSP hammer mill is built to keep that stage ahead of the line. The water-drop type chamber crushes corn, cereals and husks at 1 to 20 tonnes per hour, with a 2970 rpm rotor and 16 to 116 hammers depending on the model. High output, stable operation and easy access for screen and hammer changes keep the machine running through the shift. The 9FQ feed crusher adds the coarse and blocky duty: peanut shells, corn stalks, straw, bagasse, dried cassava and sweet potato slices, oilcake and coarse grains, at 800 to 3500 kilograms per hour. Both series are balanced and test-run at the Goldilocks factory before export packing, with manuals and parts lists that match the model numbers. When the grinding stage keeps up, the whole feed line keeps up. It is the dependable part of the feed room.
Product Introduction
The SFSP water-drop type hammer mill is Goldilocks’ high-output crushing series, built to crush granular materials such as corn, cereals and husks. Ten models cover 15 to 110 kilowatts and 1 to 20 tonnes per hour, at 2970 rpm with 16 to 116 hammers. The water-drop chamber gives the material a longer path through the hammers for a finer, more consistent grind in a single pass. Screen and hammer changes are quick, and the series is widely used in grain and feed processing plants, with published specifications and factory-direct supply. The series suits mills that run a full shift and need the grind to keep up.
The 9FQ feed crusher is Goldilocks’ series for coarse and multi-material grinding, designed for grains, feeds, pharmaceuticals and light industrial materials. Five models process granular and blocky feeds such as peanut shells, rice husks, chaff, substandard grains, corn stalks, straw, bagasse, dried sweet potato and cassava slices, corn cobs and oilcake, as well as main grains like wheat, sorghum, corn and rice, and herbal materials. Productivity runs from 800 to 3500 kilograms per hour at under 10 kilowatt-hours per tonne, with rotor diameters of 400 or 500 millimetres and simple, dependable construction. It is the dependable machine of the coarse-material side.
The Goldilocks crusher series covers the grinding stage of feed and grain processing with two proven ranges: the SFSP water-drop hammer mill crushes corn, cereals and husks at 1 to 20 tonnes per hour, and the 9FQ feed crusher handles shells, stalks, dried tubers, cakes and coarse grains at 800 to 3500 kilograms per hour, under 10 kilowatt-hours per tonne. Both ranges are built at the Hunan factory, balanced and test-run before export packing, with a manual and parts list that match, published specifications and factory-direct supply. One catalog, one parts system and one team cover both series. Simple.

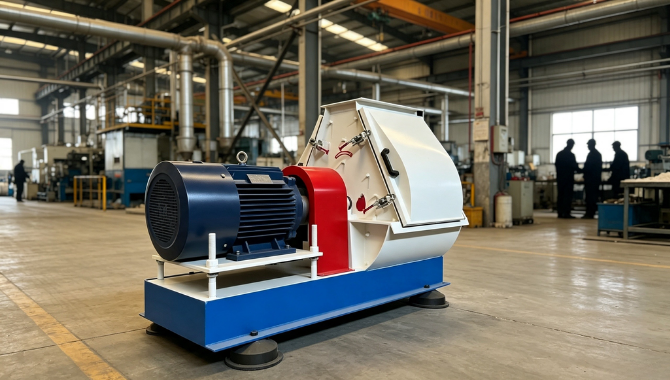

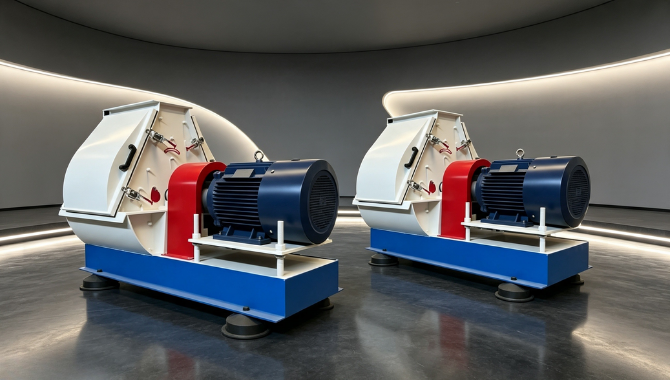

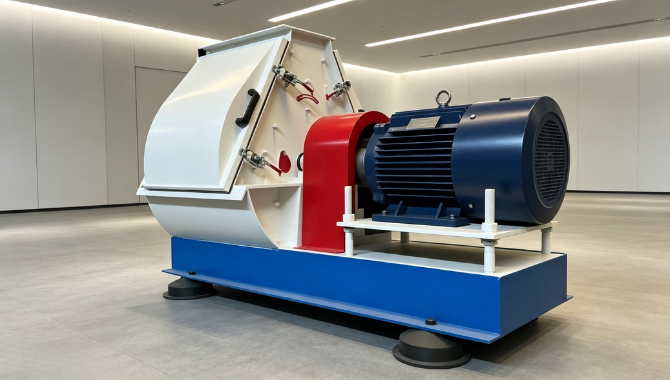

SFSP Water-Drop Hammer Mill for Feed Mills
The grinding room of a feed mill runs on the hammer mill, and the Goldilocks SFSP water-drop type series is built for that room. The water-drop chamber crushes corn, cereals and husks at 1 to 20 tonnes per hour, so the mill matches the model to the line instead of overbuying. The 2970 rpm rotor with 16 to 116 hammers delivers high output with stable operation, and the easy access for screen and hammer changes keeps downtime short. The series steps through motor ratings from 15 to 110 kilowatts, covering small mills and large feed plants from the same catalog. Each machine is balanced, painted and test-run at the Goldilocks factory in Hunan before export packing, with a manual and parts list that match the model. For a feed mill that needs the grinding stage to keep up with the line, the SFSP series is the dependable choice. The water-drop chamber also gives a finer grind in a single pass, which the mixing stage notices. For a mill that plans the grinding room, the SFSP table does the sizing. The choice is a paper exercise. The machine follows the plan. The catalog covers it.

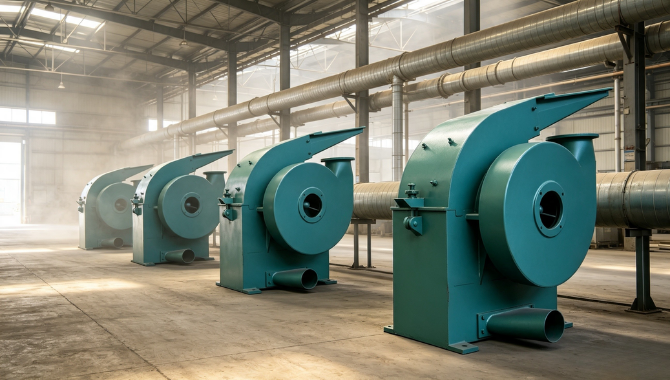

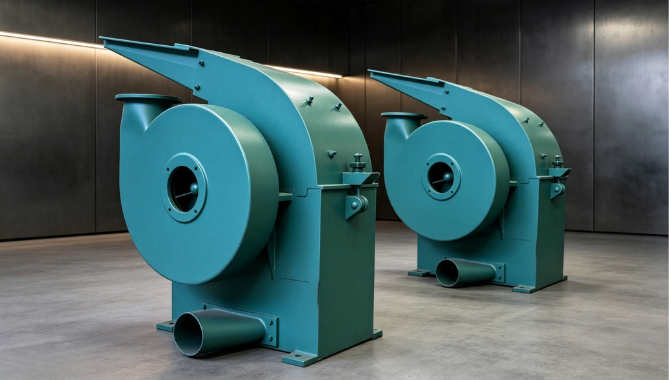

9FQ Feed Crusher for Shells, Stalks and Grains
A feed mill works with whatever the season brings, and the Goldilocks 9FQ feed crusher is built to follow the season. The series grinds granular and blocky feeds: peanut shells, rice husks, chaff, substandard grains, corn stalks, straw, bagasse, dried sweet potato slices, dried cassava slices, corn cobs and oilcake, as well as main grains like wheat, sorghum, corn and rice, and even traditional Chinese medicinal materials. Five models cover productivity from 800 to 3500 kilograms per hour at under 10 kilowatt-hours per tonne, with rotor diameters of 400 or 500 millimetres and spindle speeds of 2900 to 3700 rpm.
The design handles coarse and fibrous materials without constant attention, and the simple construction keeps maintenance a normal mill job. Balanced, test-run and shipped with matching documentation, the 9FQ turns local materials into feed the mill can use. The series takes the shock of coarse feed, keeps the meal size consistent and runs on standard power. The screens hold the meal size, and the hammers are standard parts ordered by number. That keeps the season running without a search. The machine follows the crop. And the crop follows the season. Simple and dependable. That is the 9FQ.
Corn and Grain Crushing Machine
Corn is the backbone of most feed rations, and the way it is crushed decides the quality of the meal and the speed of the line. The Goldilocks SFSP water-drop hammer mill crushes corn, cereals and husks at 1 to 20 tonnes per hour, with a 2970 rpm rotor and up to 116 hammers on the largest models. The water-drop chamber gives the material a longer path through the hammers, which means a finer, more consistent grind in a single pass. The series covers motor ratings from 15 to 110 kilowatts, so a mill sizes the crusher to its daily tonnage instead of guessing. Screen changes are quick, hammers are standard parts ordered by number, and the machine runs on standard power. Balanced and test-run before export packing, the SFSP series keeps the corn moving and the meal consistent, shift after shift. The longer path also means fewer passes, which saves power on every tonne. For a plant that grinds thousands of tonnes a year, that saving is real money. The screens hold the meal size where the ration needs it. The hammers are pinned and swapped in minutes. The rotor stays smooth at 2970 rpm. The machine runs the shift. And the next. Consistent corn meal, every batch. That is the SFSP promise.
Crusher for Peanut Shells, Stalks and Straw
Coarse materials are the cheap part of the ration and the hard part of the grinding room, and the Goldilocks 9FQ feed crusher is built for exactly that job. The series grinds peanut shells, rice husks, chaff, substandard grains, corn stalks, straw, bagasse, dried sweet potato slices, dried cassava slices, corn cobs and oilcake, materials that clog a light-duty machine in minutes.
The 9FQ handles them at 800 to 3500 kilograms per hour, with a rotor of 400 or 500 millimetres and spindle speeds of 2900 to 3700 rpm. The construction takes the shock of coarse feed, the screens keep the meal size consistent, and the under 10 kilowatt-hours per tonne figure keeps the power bill honest. Balanced and test-run before export packing, each machine ships with a manual and parts list that match the model.
For a mill that uses crop residues, the 9FQ is the workhorse of the coarse side. The screens keep the coarse meal size consistent, so the ration mixes evenly in the next stage. The under 10 kilowatt-hours figure keeps the cost of the coarse side honest. For a mill that grinds residues in volume, the 9FQ is the machine the season counts on. It takes the rough material without complaint. The construction is built for it. Simple, strong, dependable. That is the coarse side.
Low Electricity Feed Crusher Per Tonne
Grinding is the hungriest stage of a feed line, and the number that matters is the kilowatt-hours per tonne, not the motor size alone. The Goldilocks 9FQ series publishes that number: under 10 kilowatt-hours per tonne across all five models, from 800 to 3500 kilograms per hour. The SFSP series adds the high-volume duty with capacities up to 20 tonnes per hour, so the energy per tonne stays low across the range. Both series run on standard power, use simple hammer and screen construction, and keep the maintenance to ordinary mill skills.
The factory publishes the motor ratings and the capacities, so the plant can put the energy math on one sheet and check it against its own meter. Balanced, painted and test-run before export packing, each crusher ships with a manual and parts list that match the model. For a feed plant that runs long shifts, the saving at the grinding stage shows on the month’s bill. The 9FQ publishes the number, and the SFSP keeps the energy per tonne low at scale. For a plant that compares on paper, the energy math is on one sheet. The meter checks it in the first month. The published ratings make the comparison fair. No hidden cost in the box. The standard power keeps the installation simple. The saving shows on the bill. Month after month. That is the low-power story.
Crusher Value for a Feed Mill Budget
A crusher is one of the biggest motors in a feed plant, and getting the size and the price right matters on two sheets: the quotation and the electric bill. The Goldilocks SFSP and 9FQ series keep both honest. The published capacities let the plant match the model to the daily tonnage, so it does not pay to spin an oversized rotor for years. The 9FQ’s under 10 kilowatt-hours per tonne figure is a number the plant can check on its own meter, and the SFSP’s high output keeps the energy per tonne low at scale. Factory-direct pricing removes the reseller margin, and the published parts list keeps the spares cheap to identify and order. Each crusher ships balanced, painted and test-run, so the machine arrives ready to run rather than needing a service visit. For a plant that compares machines on paper, the crusher series gives honest specifications, honest packing and honest support at a factory-direct price.
Over a decade of exports has kept this value stable. The factory-direct price is one thing; the documented machine is another, and both come in the same order.
For a buyer comparing quotes, the manual and parts list that match the model close the deal. The test-run before packing is the quality the price cannot show. Together they make the value easy to see on paper. That is the value story of the series. It is also the reason buyers return. A decade of exports proves the point. The crushers stay in the catalog. They earn their place. Model after model. The factory keeps the promise. The price stays honest. That is the Goldilocks way. Buyers notice. And come back. Season after season.
Application Fields & Scenarios
The 9FQ grinds peanut shells, straw, bagasse, corn cobs and dried tuber slices, and even traditional Chinese medicinal materials. One machine covers the fibrous and blocky side of the processing room.
The SFSP hammer mill crushes corn, cereals and husks at 1 to 20 tonnes per hour, and the 9FQ handles shells, stalks and cakes at 800 to 3500 kilograms per hour. Together they cover the grinding stage of small and large feed lines.
Grain processors use the SFSP series to crush wheat, sorghum, corn and rice for flour and meal, and the 9FQ for coarse grains and crop residues. The published capacities match the crusher to the daily tonnage.
Livestock farms grind their own corn, wheat and coarse materials with the 9FQ series at 800 to 3500 kilograms per hour. The simple construction and standard power make it a practical fit for farm workshops.
The 9FQ feed crusher also processes traditional Chinese medicinal materials and light industrial raw materials, giving a simple, dependable machine for small-batch grinding duties.
The SFSP series pre-crushes cereals and husks for food processing lines, with a consistent grind in a single pass and easy screen changes for different meal sizes.
Technical Parameters
| Model | Rotor Diameter (mm) | Screen width (mm) | Spindle speed (r/min) | Power (kW) | Productivity (kg/h) | Electricity consumption (kW·h/t) |
|---|---|---|---|---|---|---|
| 9FQ40-20 | Φ400 | 200 | 3700 | 7.5-11 | 800-1200 | <10 |
| 9FQ40-28 | Φ400 | 280 | 3700 | 11-15 | 1200-2000 | <10 |
| 9FQ50-25 | Φ500 | 250 | 2900 | 15-22 | 1500-2200 | <10 |
| 9FQ50-32 | Φ500 | 320 | 2900 | 22-30 | 1500-3000 | <10 |
| 9FQ50-50 | Φ500 | 500 | 2900 | 30-37 | 2500-3500 | <10 |
| Model | Power (kW) | Spindle speed (rpm) | Number of Hammer Plates (pcs) | Capacity (t/h) | Air Volume (m³/h) | Rotor diameter (mm) | Width of the crushing chamber (mm) |
|---|---|---|---|---|---|---|---|
| SFSP 50-25 | 15 | 2970 | 16 | 1-2 | 1400 | 500 | 250 |
| SFSP 50-30 | 18.5 | 2970 | 24 | 2-3 | 1500 | 500 | 300 |
| SFSP 56-30 | 22 | 2970 | 24 | 2-4 | 1600 | 560 | 300 |
| SFSP 56-36 | 30 | 2970 | 24 | 3-5 | 1700 | 560 | 360 |
| SFSP 56-40 | 37 | 2970 | 48 | 5-6 | 1900 | 560 | 400 |
| SFSP 60-45 | 45 | 2970 | 60 | 6-8 | 2300 | 600 | 450 |
| SFSP 60-60 | 55 | 2970 | 72 | 8-10 | 2600 | 600 | 600 |
| SFSP 63-70 | 75 | 2970 | 84 | 10-15 | 3200 | 630 | 700 |
| SFSP 63-80 | 90 | 2970 | 104 | 14-18 | 4100 | 630 | 800 |
| SFSP 63-90 | 110 | 2970 | 116 | 15-20 | 5000 | 630 | 900 |
